JY305 Tractor GNSS Auto-Steering System
$5,900.00
Stars,100% Recommend
JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel. It integrates the advantages of convenient installation, largetorque, high precision, low noise, low heat and quick debugging.
2.5cm accurate RTK auto-steer for tractor
Highly integrated system
10.1’’ touch screen control tablet
Support CORS account for precision
- Benefit
- Specification
- Download
- Reviews
Go to Europe Amazon store to buy
What is a Tractor Autopilot System
The JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel.
It integrates the advantages of convenient installation, largetorque, high precision, low noise, low heat and quick debugging.
It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.
Product Advantage
lnstallation is convenient, fast, the system is free of debugging, installation can be completed
High accuracy to ±2.5cm
Supports multiple constellations & frequencies:
GPS L1, L2；GLONASS L1, L2；BeiDou B1, B2；GALILEO E1, E5b；QZSS L1, L2；SBAS L1
Screen with error indicator light target,the accuracy of operation at a glance
Click to experience the simulator! Simulate autosteering operation.
Main Accessories

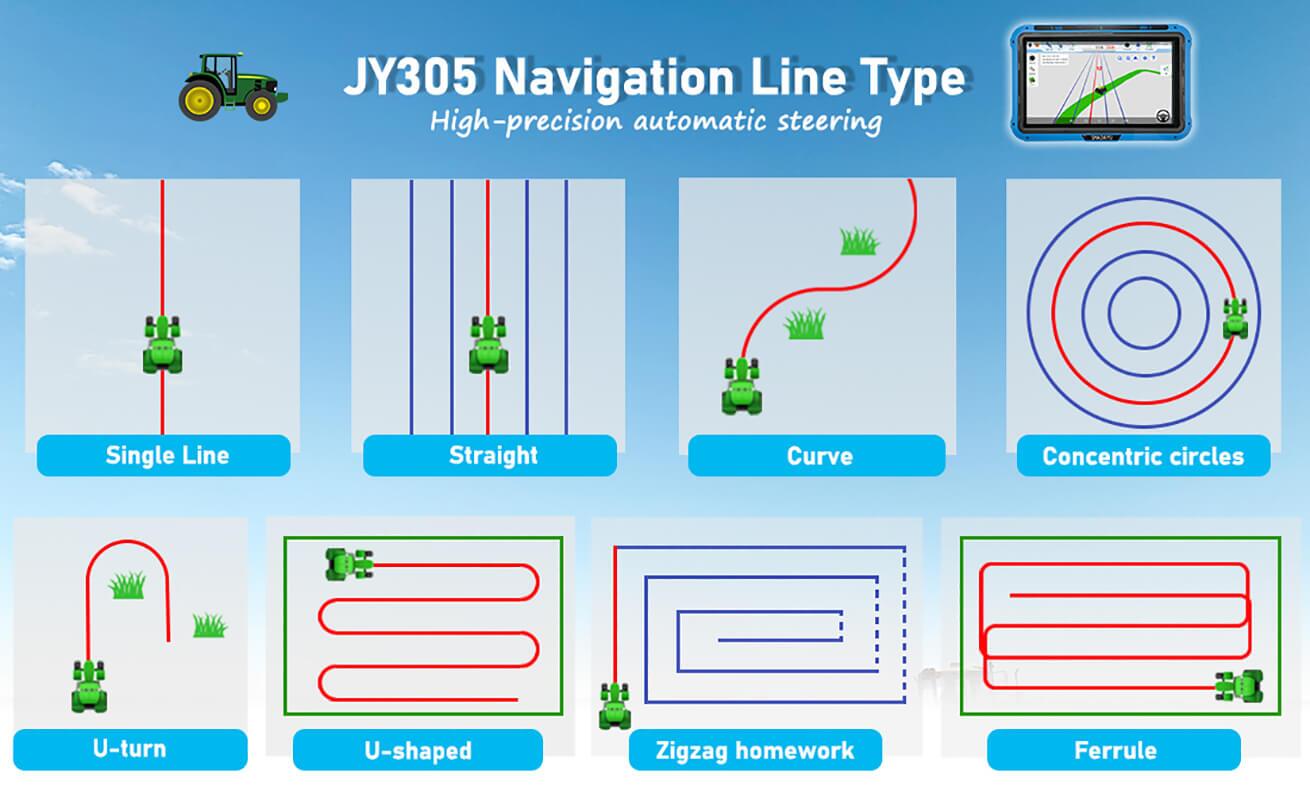

JY305 Navigation Line Type
Single Line , Straight , Curve/AB curve , Concentric circles , U-turn, U-shaped , Zigzag homework , Ferrule
Correction type: CORS, Radio
Differential format: RTCM3.0/3.2
Supported file formats for import: ini, shp, kml, dat
Accuracy: 2.5cm with Correction
Application Field
It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.
It can be widely used for sowing, cultivating, trenching, ridging, spraying pesticide, transplanting, land consolidation, harvesting and other work scenarios.
JY305 GNSS Auto-Steering System
The Smajayu JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel.
It integrates the advantages of convenient installation, large torque, high precision, low noise, low heat and quick debugging.
It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.
The system includes a control tablet integrated with a 4G modem, a steering wheel motor with a built-in
controller, and an angle sensor. It can be widely used for sowing, cultivating, trenching, ridging, spraying
pesticide, transplanting, land consolidation, harvesting and other work scenarios.
PRODUCT DESCRIPTION
T100 GNSS TABLET WITH INTUITIVE SOFTWARE
With 4G modem, Bluetooth and WIFI, it is ideal to connect with CORS or upload the working information to digital farm.
The 10.1-inch screen with multilingual software and clear graphic interface is suitable to handle all common farming operations.
EMS2 ELECTRIC MOTOR
The EMS2 integrates the electric motor and ECU into one rugged device which could output stable and high torque.
Easy to install and maintain makes it a reachable solution for all farmers. It works with low noise, low heat and high accuracy.
HD Camera
Vision-based Precision Farming to achieve real-time real monitor of working environment.
The system is simple in composition, in single-antenna mode, easy to install, free of debugging, and can be operated in the field directly after installation.
Multiple Working Modes
It can work in straightlines, curves, harrowing, and other situations, and it's quite effective working at high-speed.
Stable Signal and Anti-interference
The RTK base station coverage is 40km. And the exclusive breakpoint battery life function can continue to work for ten minutes even if the network is disconnected.
Strong Scalability
Adding simple components can realize the mutual conversion of the land leveling system or intelligent spray system. Experience new features for free forever.
-
JY305 Operation Manual
9.95MB
-
JY305 Installation Manual
9.18MB
